CA-70
PS6 Preamp Module
Modular
Microphone/Line
Amplifier
The CA-70 preamplifier module pays homage to the classic American two-stage circuit invented by Western Electric™ in 1913 and manufactured by multiple companies from the 1930's through the 1950's – most notably RCA™, Gates™, and Langevin™. This old octal tube circuit has a huge thick tone and is what many consider to be the quintessential “old tube preamp” sound.
The CA-70 PS6 preamp module uses our own Coil Audio transformers, high quality capacitors, resistors, and NOS octal tubes. It's powered by our PS6 Rack Tray and Power Supply.
$1,899.00per module
CA-70 AmplifierSpecifications
- Two-stage 6J7/6c5 vacuum tube circuit.
- Negative feedback tone adjustment with high/low filters.
- 42db-54db of available gain.
- Flexible input pad section for mic or line level operation.
- 150 ohm mic, 20k line input, 600 ohm output.
- Interchangeable/optional input and output transformers.
- NOS tubes, signal caps and resistors, PEC 2w carbon pots.

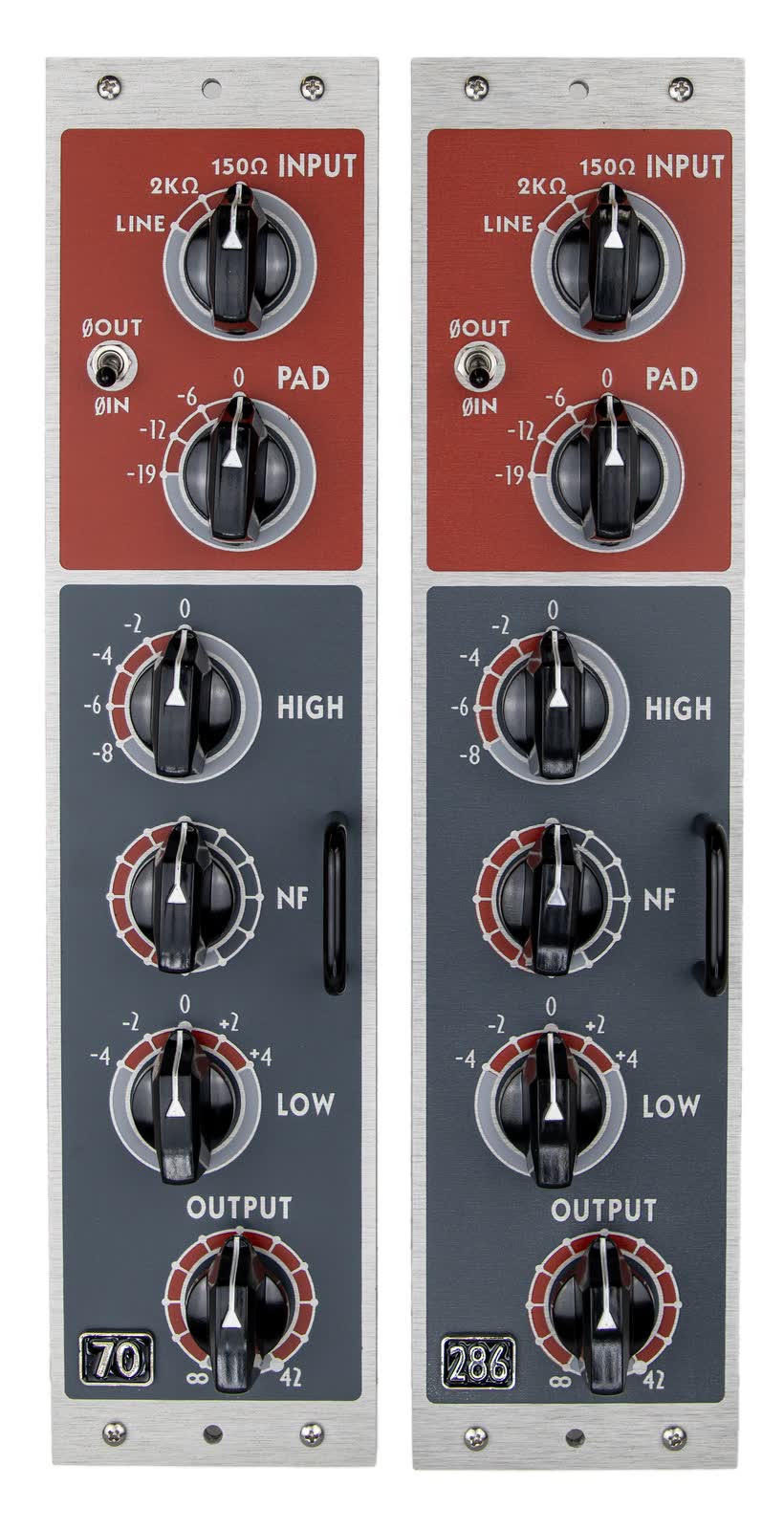

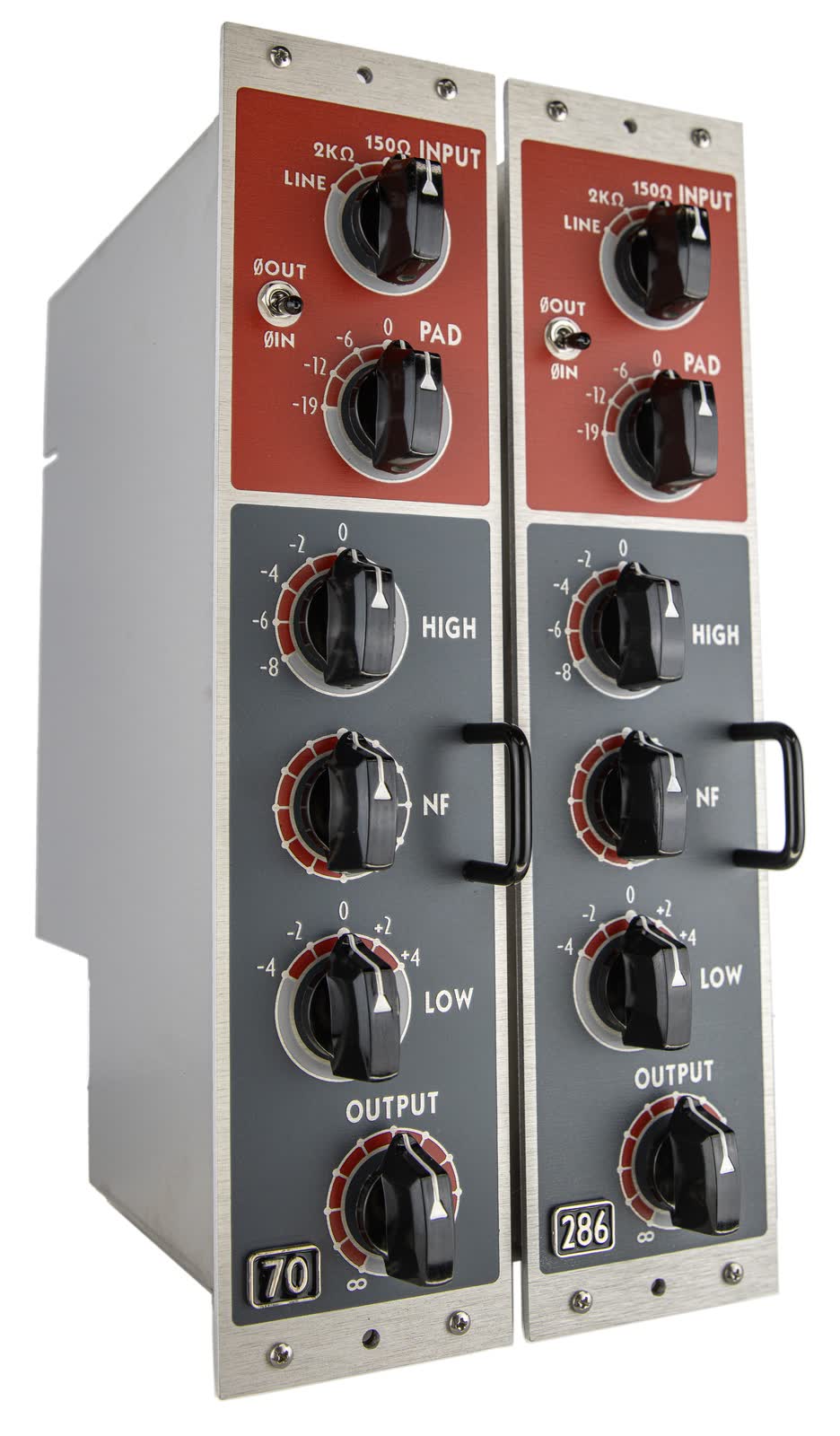

- Up to six CA series amplifiers mount into our PS6 rack.
- Hand built and tested in the USA.
PS6 Rack TraySpecifications
- 7u rack mount chassis.
- Provides housing, audio I/O and power for up to 6 modules.
- Rugged military-grade Cinch Jones connectors.
- Internal point to point wiring.
- Neutrik XLR connections.
- Up to six CA Series Amplifiers mount into our PS6 Rack.
- Hand built and tested in the USA.
PS6 Power SupplySpecifications
- Standard 19 inch 2u rack-mount chassis.
- Filament supply 6.3v @ 4amps, regulated b+ 275v supply @ .5amps.
- Switched filament power regulation for 1-3 or 4-6 modules.
- Fault light indicating fuse holders.
- Internal point to point wiring.
- 5 foot umbilical power cord with a military Cinch Jones plug.
- Hand built and tested in the USA.
