CA-286
PS6 Preamp Module
Modular
Microphone/Line
Amplifier
The CA-286 preamp module is a tribute to the classic 1950’s and 60’s European two-stage amplifier made popular by Telefunken™, Langevin™, Collins™, and Gates™. The CA-286 excels in high fidelity recording applications providing the rich, detailed midrange often associated with vintage EF86 tube based preamps.

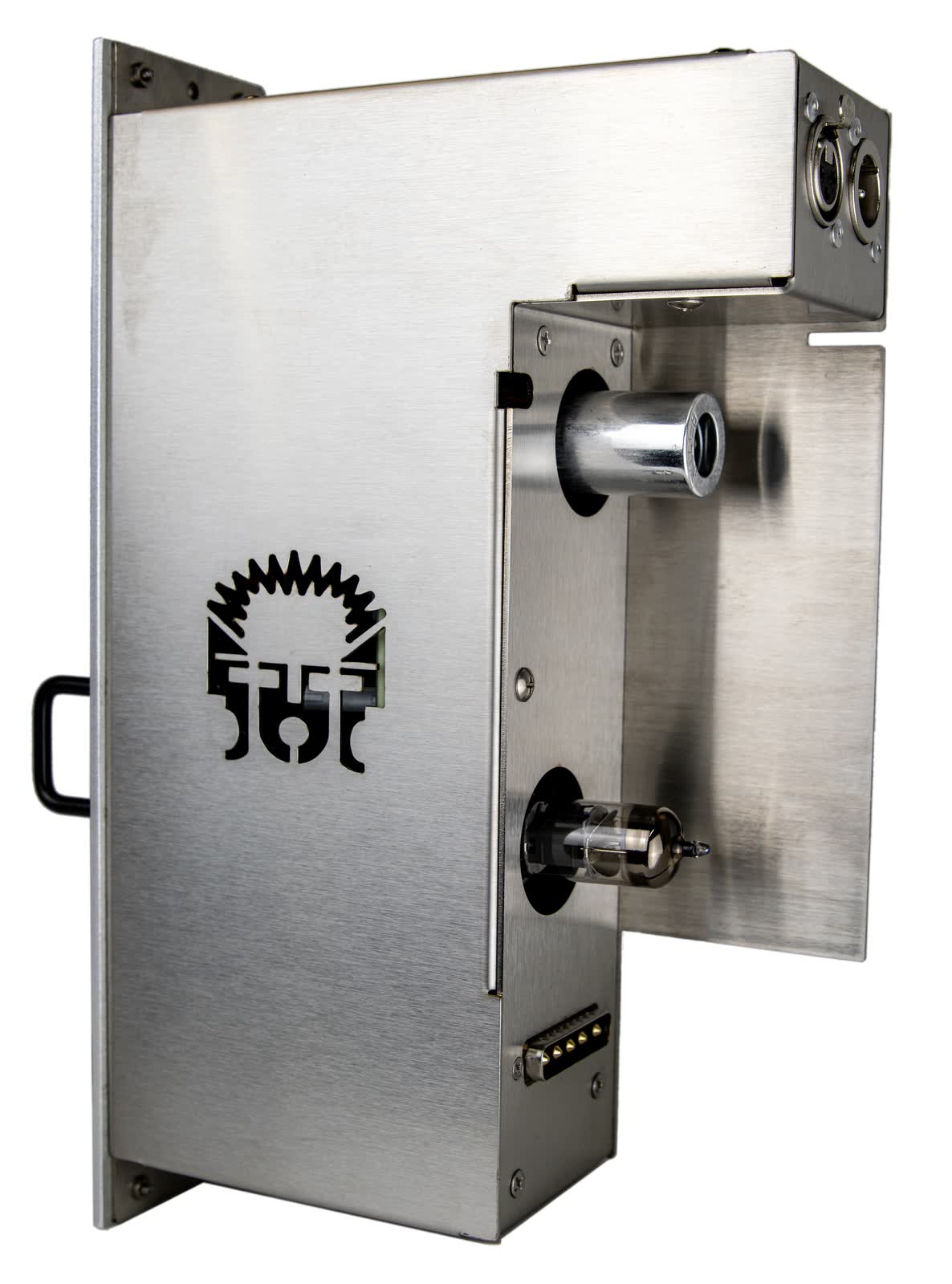

The CA-286 PS6 preamp module uses our own Coil Audio transformers, high quality capacitors, resistors, and NOS octal tubes and is powered by our PS6 Rack Tray and Power Supply.
$1,899.00per module

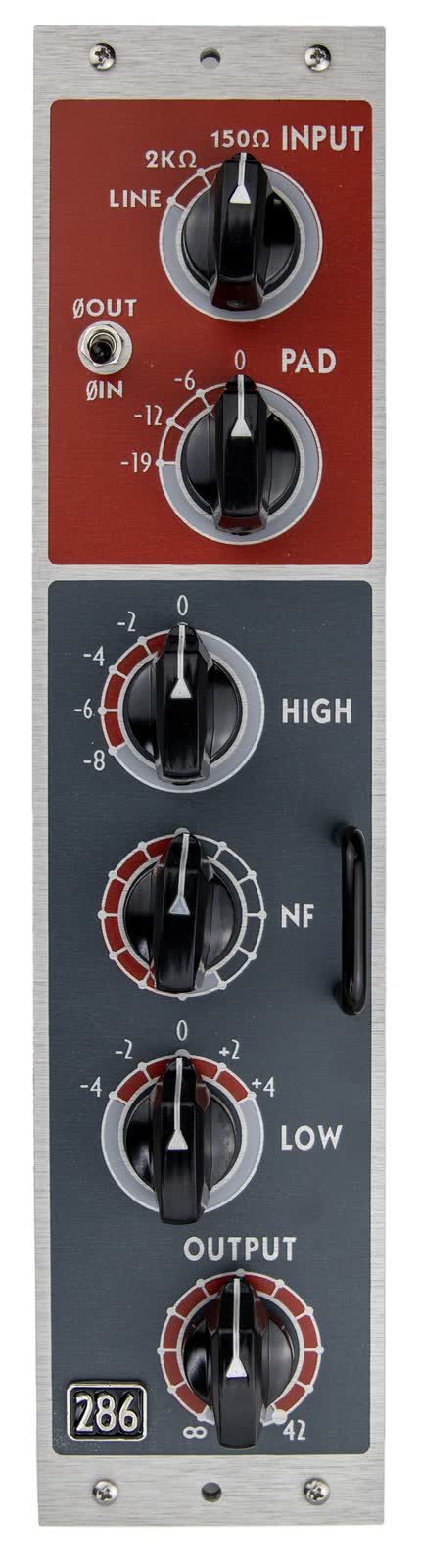

CA-286 AmplifierSpecifications
- Two-stage EF86/6267 pentode vacuum tube-based circuit.
- 42db-60db of available gain.
- Flexible input pad section for mic or line level operation.

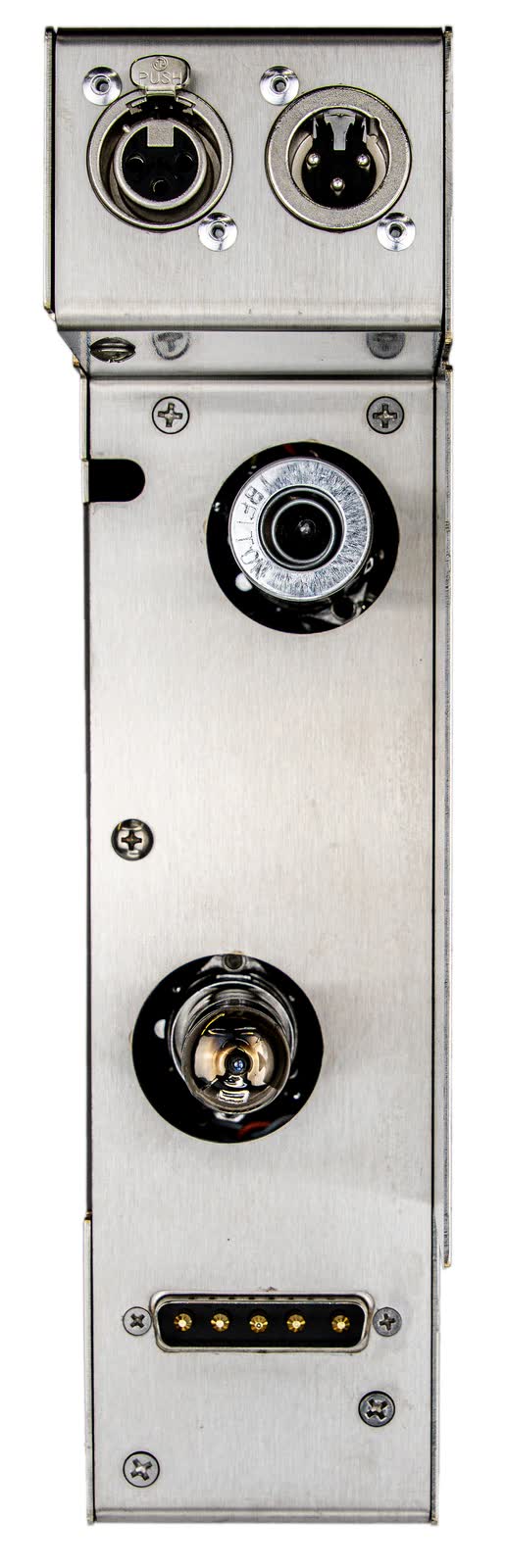

- Transformer balanced. 150 Ohm mic, or 20k Bridging line input, 600 Ohm output.
- Interchangeable/Optional input and output transformers.
- NOS tubes, signal caps and resistors, PEC 2W carbon pots.

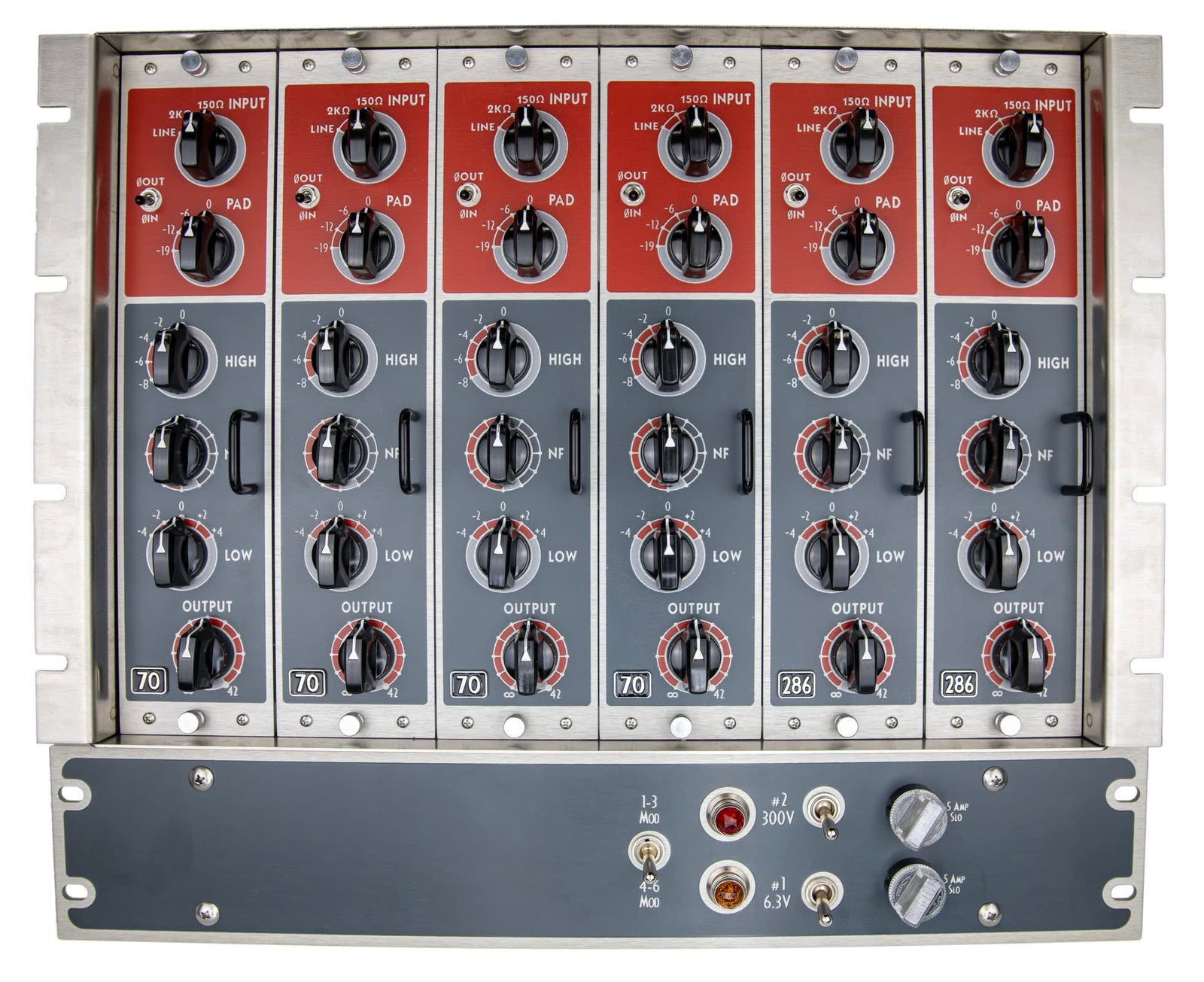

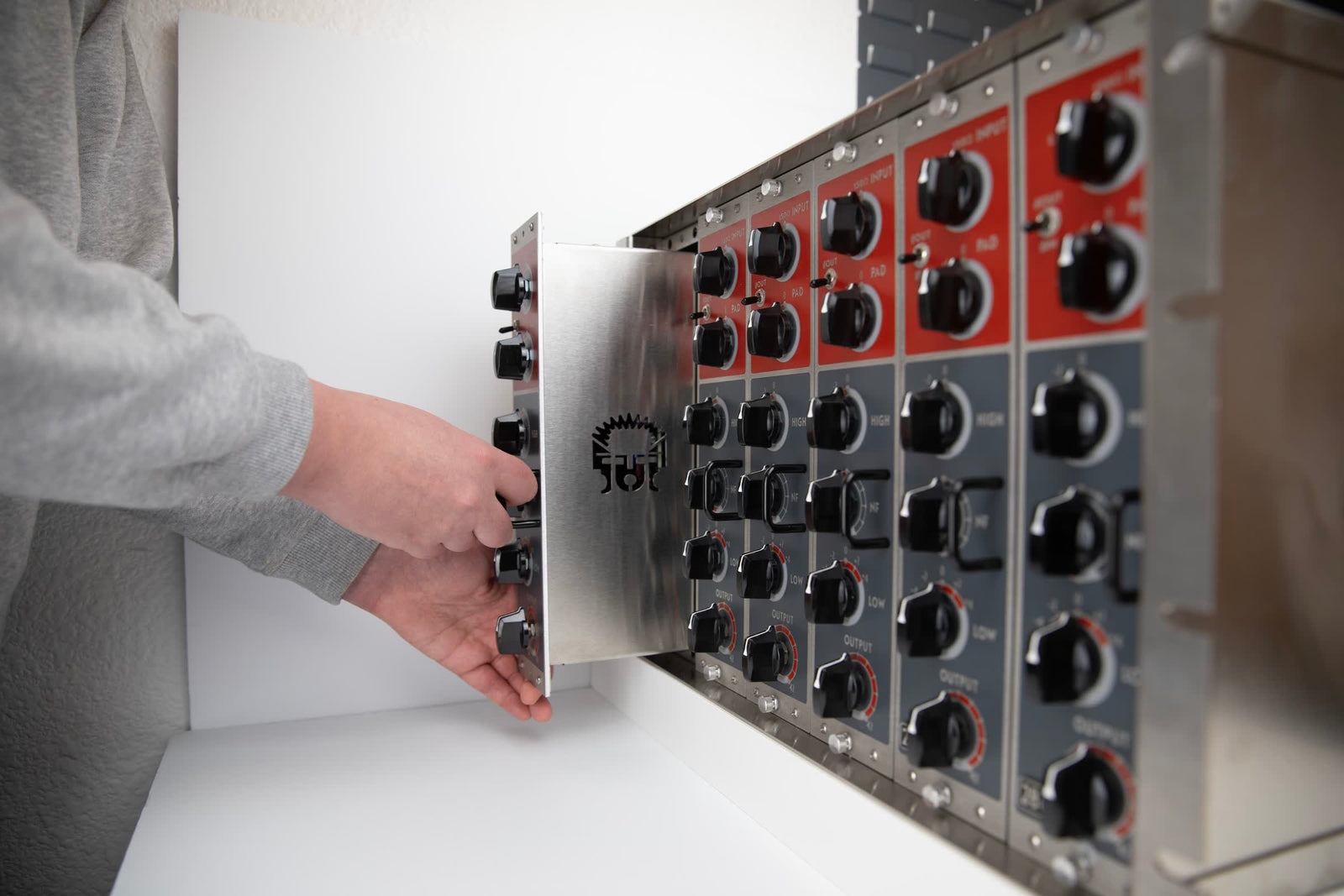

- Up to Six CA Series Amplifiers mount into our PS6 Rack.
- Hand Built and Tested in the USA.

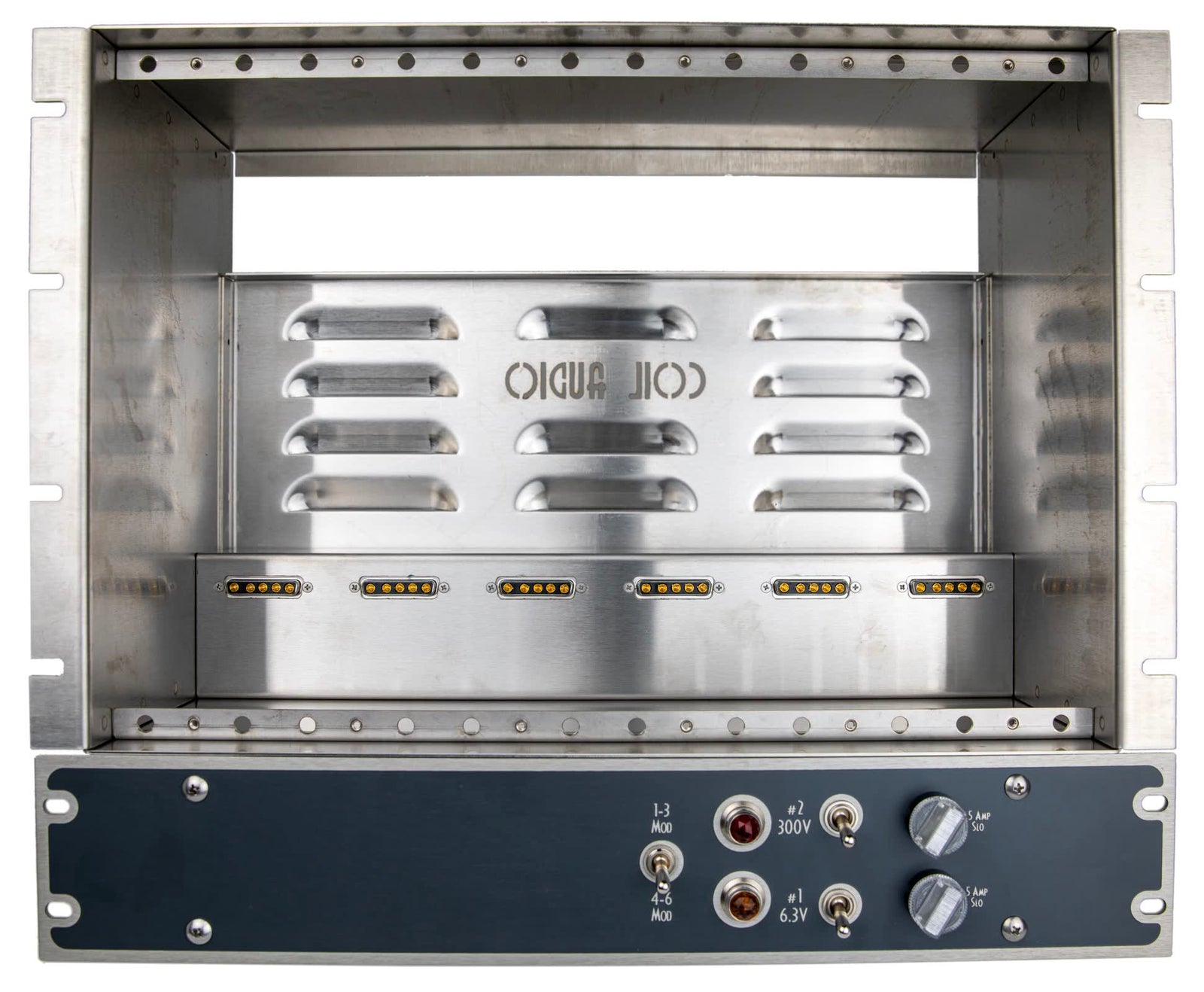

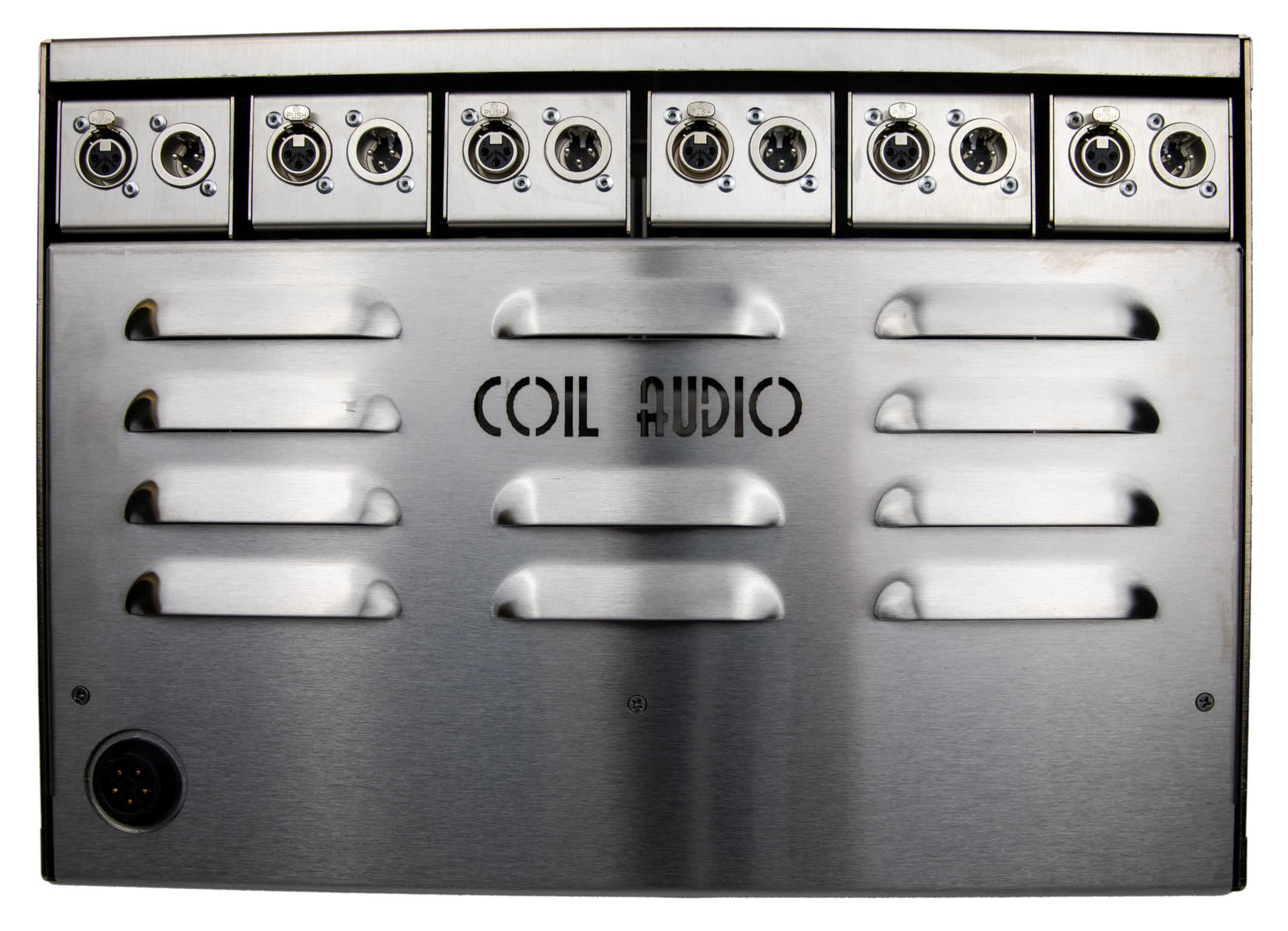

PS6 Rack TraySpecifications
- 7u rack mount chassis.
- Provides housing, audio I/O and power for up to 6 modules.
- Rugged military-grade Cinch Jones connectors.
- Internal point to point wiring.
- Neutrik XLR connections.
- Up to six CA Series Amplifiers mount into our PS6 Rack.
- Hand built and tested in the USA.

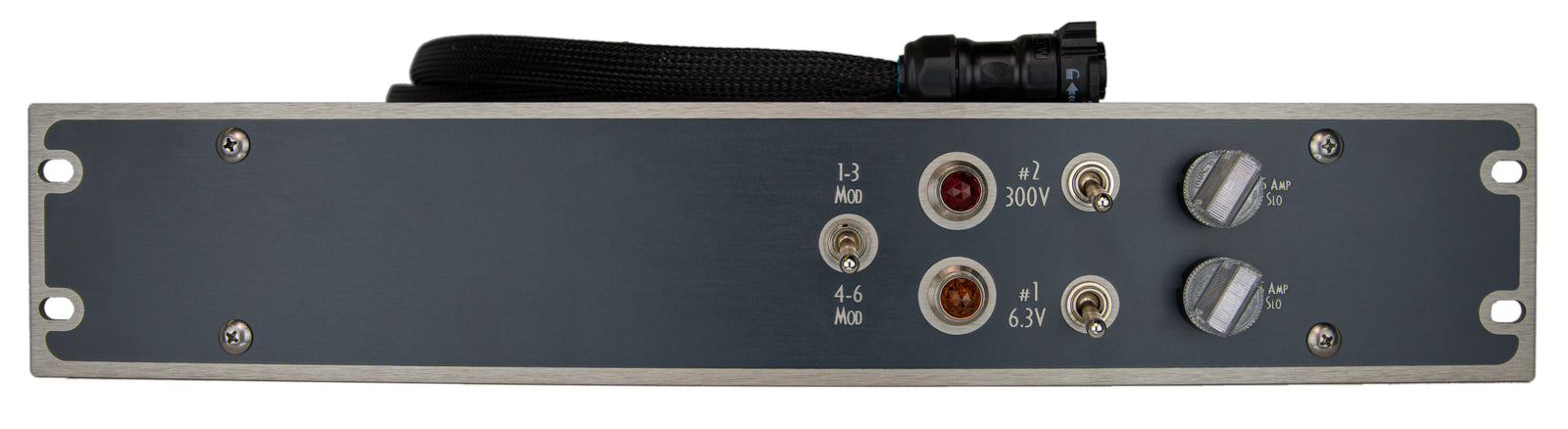

PS6 Power SupplySpecifications
- Standard 19 inch 2u rack-mount chassis.
- Filament supply 6.3v @ 4amps, regulated b+ 275v supply @ .5amps.
- Switched filament power regulation for 1-3 or 4-6 modules.
- Fault light indicating fuse holders.
- Internal point to point wiring.

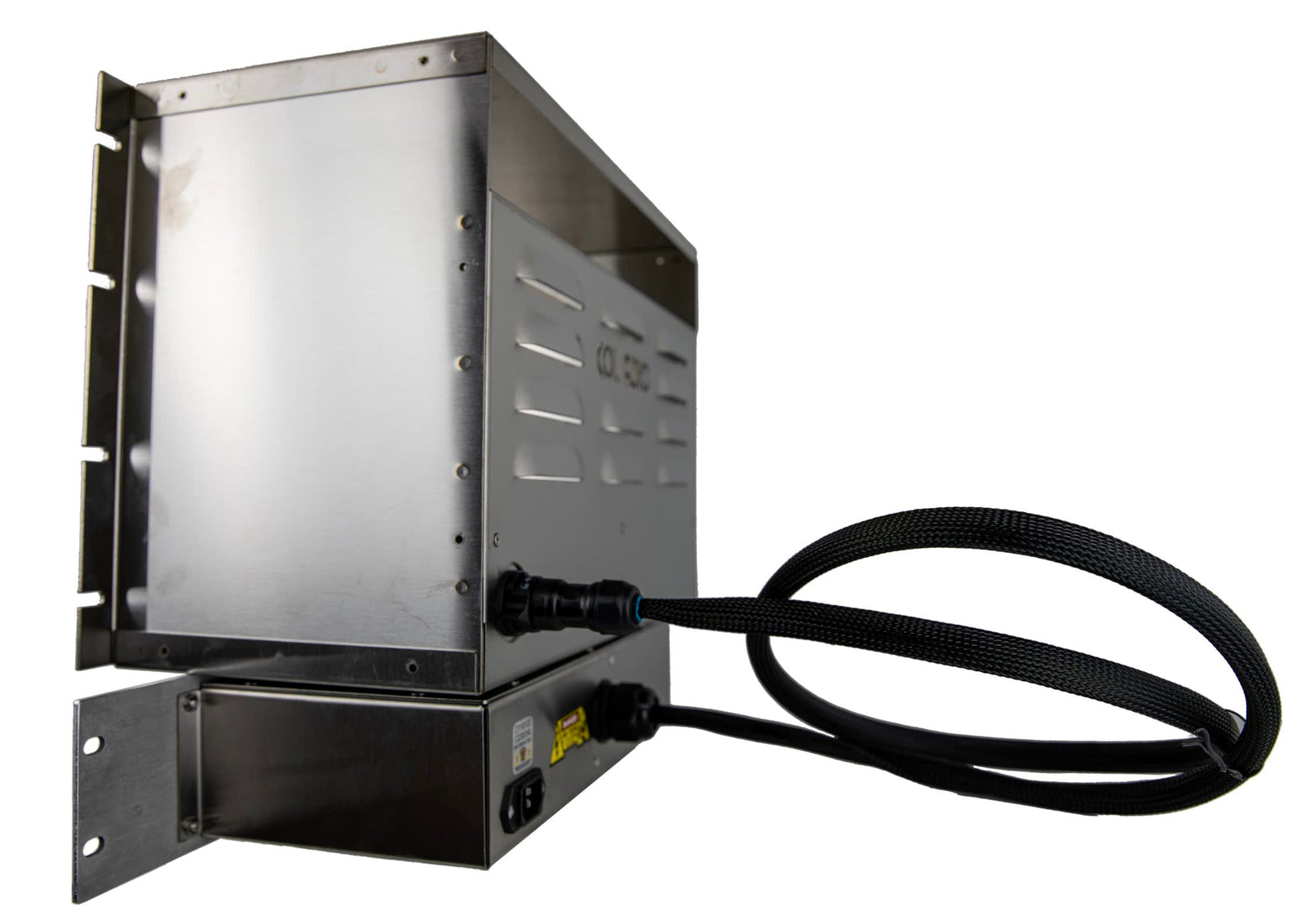

- 5 foot umbilical power cord with a military Cinch Jones plug.
- Hand built and tested in the USA.
