Modular Microphone/Line Amplifier

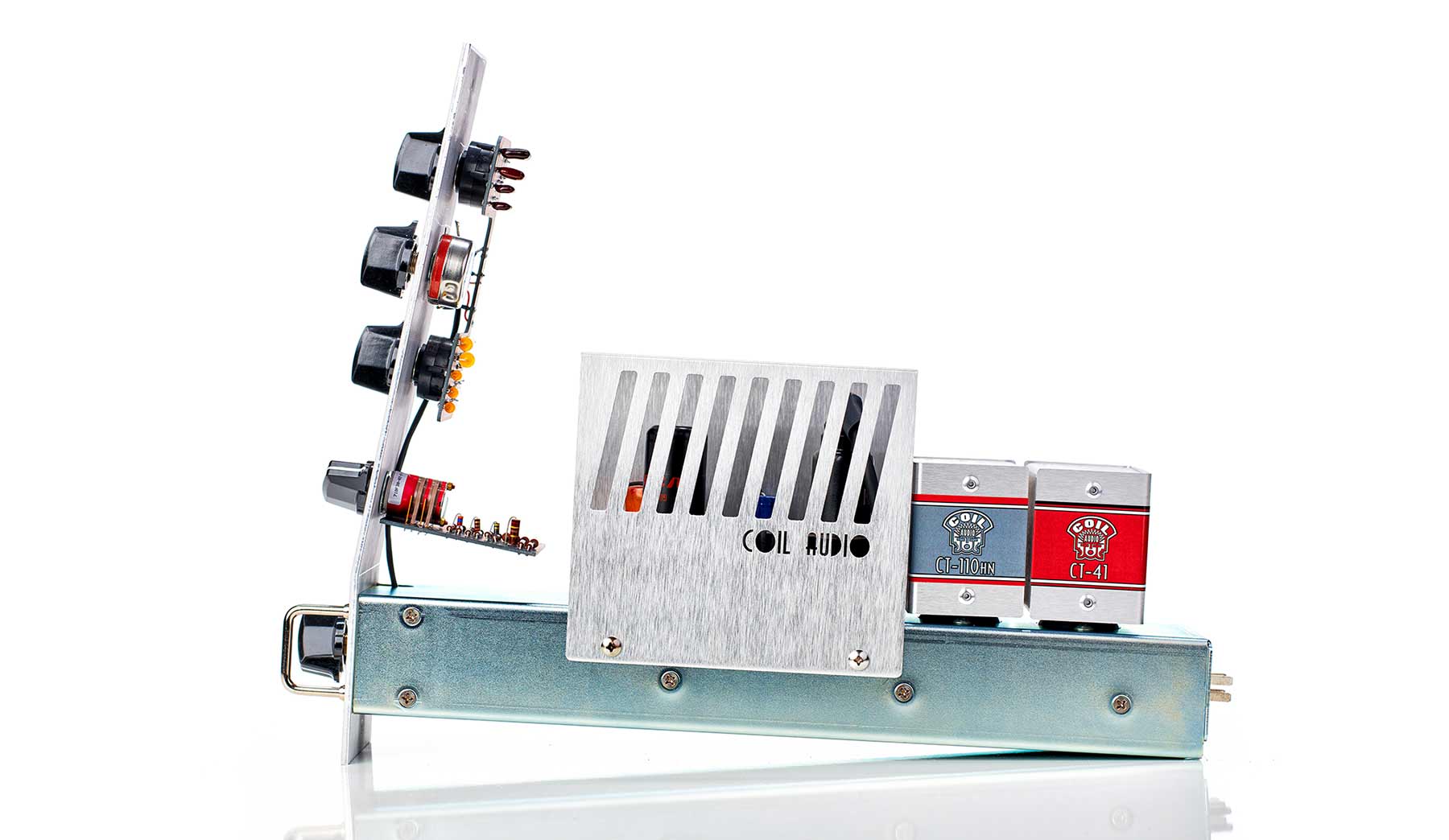

The CA-70 preamplifier module pays homage to the classic American two-stage circuit invented by Western Electric™ in 1913 and manufactured by multiple companys from the 1930's through the 1950's – most notably RCA™, Gates™, and Langevin™. This old octal tube circuit has a huge thick tone and is what many consider to be the quintessential “old tube preamp” sound.

The CA-70 PS6 preamp module uses our own Coil Audio transformers, high quality capacitors, resistors, and NOS octal tubes. It's powered by our PS6 Rack Tray and Power Supply.

$1899.00

The Controls

The (INPUT) pad section contains a phase reverse switch, and a 6 position pad network. The first four positions are various 150/250 ohm mic pads; -6db, -12db, and -19db. The final two LN1 and LN2 positions allow line-level signal to run through the amplifier providing tone-shaping capabilities while mixing from your DAW, Tape Machine, or other Line Level Devices – including other Preamps.

The (NF) control varies the amount of negative feedback present in the circuit. Counter-clockwise brightens and moves the sound forward while raising harmonics and sensitivity. Clockwise increases negative feedback, producing a darker tone with a smooth, dampened harmonic structure.

The (HIGH) switch transitions from the natural openness of the tubes to a gentle filtering of upper frequencies.

The (LOW) switch reacts with the NF, boosting or cutting low frequency while moving the low end from front to back in the sound stage.

The (OUTPUT) control is placed between the 1st stage 6J7 and 2nd stage 6C5 tubes and sets the final level Output level.

PS6
RACK TRAY &
POWER SUPPLY

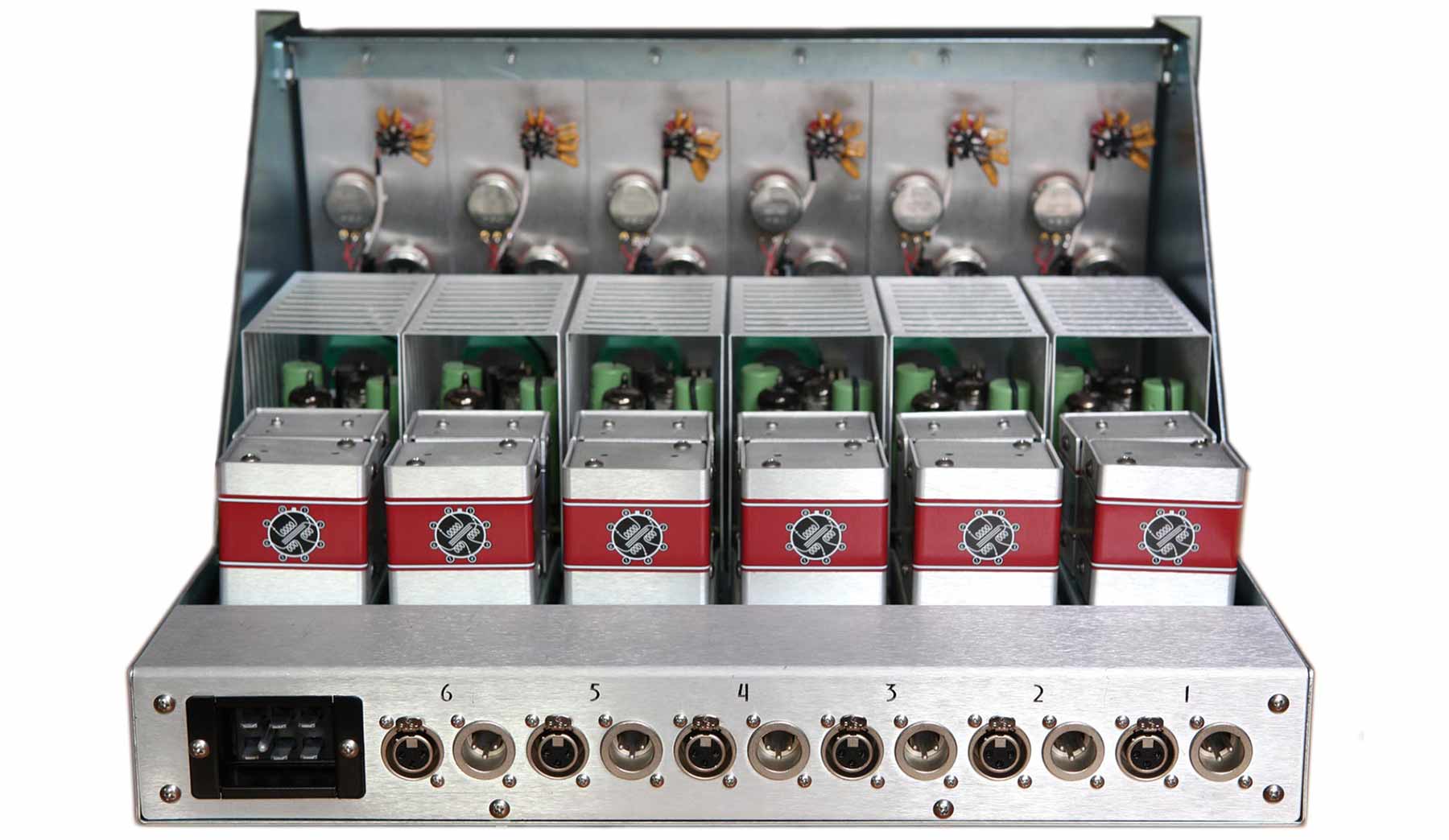

House and power up to six of our CA series modules. The PS6 Rack Tray and PSU is comprised of a 7U Rack Tray and a seperate 2U power supply. The 'soft-start'/standby feature allows you to switch the Filament and B+ voltages on and off separately.

$1,199.00
CT-110HN
Super-Mu
Microphone/Input
Transformer

Based on a rare 1950's high fidelity coil. Detail oriented, it adds an excellent top and bottom extension with a smooth, breathy saturation.

CT-41
Line Output
(or Input)
Transformer

Based on a popular 1960's Peerless design. Frequency response is ruler flat from 20Hz to 30kHz, dipping just below 1db at 60kHz. Its smooth saturation imparts a rich, wooly, high fidelity sound to anything passing through it.

CA-70 Amplifier
Specifications

  • Two-stage 6J7/6c5 vacuum tube circuit.
  • Negative feedback tone adjustment with high/low filters.
  • 42db-54db of available gain.
  • Flexible input pad section for mic or line level operation.
  • 150 ohm mic, 20k line input, 600 ohm output.
  • Interchangeable/optional input and output transformers.
  • NOS tubes, signal caps and resistors, PEC 2w carbon pots.
  • Up to six CA series amplifiers mount into our PS6 rack.
  • Hand built and tested in the USA.

PS6 Rack Tray
Specifications

  • 7u rack mount chassis.
  • Provides housing, audio I/O and power for up to 6 modules.
  • Rugged military-grade Cinch Jones connectors.
  • Internal point to point wiring.
  • Neutrik XLR connections.
  • Up to six CA Series Amplifiers mount into our PS6 Rack.
  • Hand built and tested in the USA.

PS6 Power Supply
Specifications

  • Standard 19 inch 2u rack-mount chassis.
  • Filament supply 6.3v @ 4amps, regulated b+ 275v supply @ .5amps.
  • Switched filament power regulation for 1-3 or 4-6 modules.
  • Fault light indicating fuse holders.
  • Internal point to point wiring.
  • 5 foot umbilical power cord with a military Cinch Jones plug.
  • Hand built and tested in the USA.
